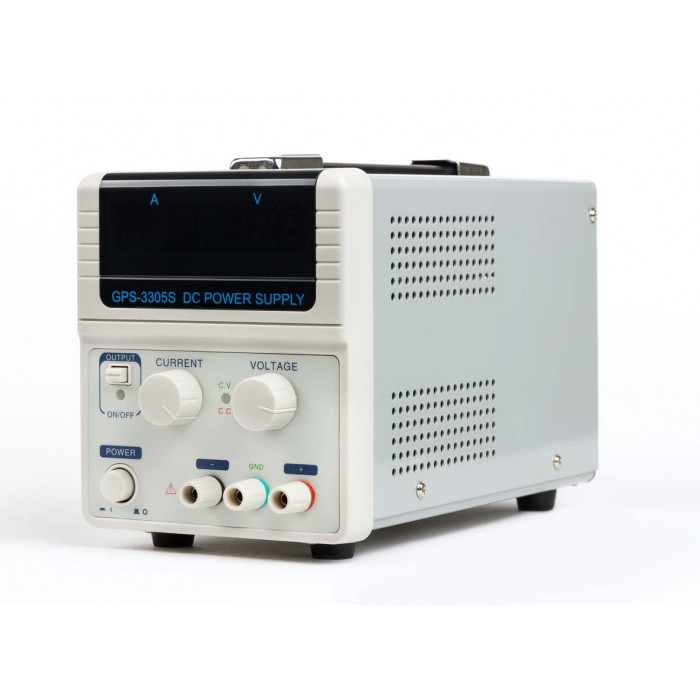

منبع تغذیه آزمایشگاهی ترانسی تک کانال دیجیتالی مدل GPS-3305S

Model No.

GPS-3303D

GPS-3306D

GPS-3603D

GPS-3303S

GPS-3305S

GPS-3020S

Max. Power Output

190 W

375 W

375 W

90 W

150 W

600 W

OUTPUT  MODE

CH1

CH2

CH3

CH1

CH2

CH3

CH1

CH2

CH3

CH1

CH1

CH1

Voltage

0 – 30V

2.2-5.2V

0 – 30V

5V

0 – 60V

5V

0 – 30V

0 – 30V

0 – 30V

Current

0-3A

1A max.

0-6A

3A

0-3A

3A

0-3A

0-5A

0-20A

Tracking Series Voltage

0-60V

---

0-60V

---

0-120V

---

-----

-----

-----

Tracking Parallel Current

0-6A

---

0-12A

---

0-6A

---

-----

-----

-----

CONSTANT VOLTAGE OPERATION (CH1, CH2)

Line Regulation

≤ 0.01% + 3mV

Load Regulation

≤ 0.01% + 3mV (rating current ≤ 3A)

≤ 0.02% + 3mV (rating current >3A)

Ripple & Noise

≤ 1mVrms, 5Hz ~ 1MHz

Recovery Time

≤ 100µS ( 50% Load change, Minimum load 0.5A)

CONSTANT CURRENT OPERATION (CH1, CH2)

Line Regulation

≤ 0.2% + 3mA

Load Regulation

≤ 0.2% + 3mA

Ripple & Noise

≤ 3mArms

TRACKING OPERATION

Tracking Error

≤ 0.5% + 10mV of the CH1

Series Regulation

≤ 300mV

Load Regulation

≤ 0.01% + 3mV

Ripple & Noise

≤ 2mVrms, 5Hz ~ 1MHz

GPS-3303D  2.2V -5.2V OUTPUT (CH3); GPS-3306D and GPS-3603D  5V FIX OUTPUT (CH3)

Line Regulation

≤ 5mV

Load Regulation

≤  15mV

Ripple & Noise

≤ 2mVrms, 5Hz-1MHz

Current Output

GPS-3303: 1A,  GPS-3305: 3A

METER

Digital

3 Digit 0.5” LED display

Voltage Meter :  Resolution: 100mV , Accuracy: 0.3% of reading

Current Meter :  Resolution: 10mA   , Accuracy: 0.6% of reading

INSULATION

Chassis and terminal

≥ DC 500V/ 20MΩ

Safety & EMC Standard

Complies with EN61010-1 and EN61326

POWER SOURCE

AC 230V ± 10% , 50Hz

ACCESSORIES

User manual x1 , Power cord x1

DIMENSION & WEIGHT

280(L)x255(W)x145(H)  Approx.: 7 Kg    : GPS-3303D / GPS-3306D / GPS-3603D

260(L)x150(W)x145(H)  Approx.:4 Kg     : GPS-3303S & GPS-3305S

280(L)x255(W)x185(H)  Approx.: 20Kg   : GPS-3020S
