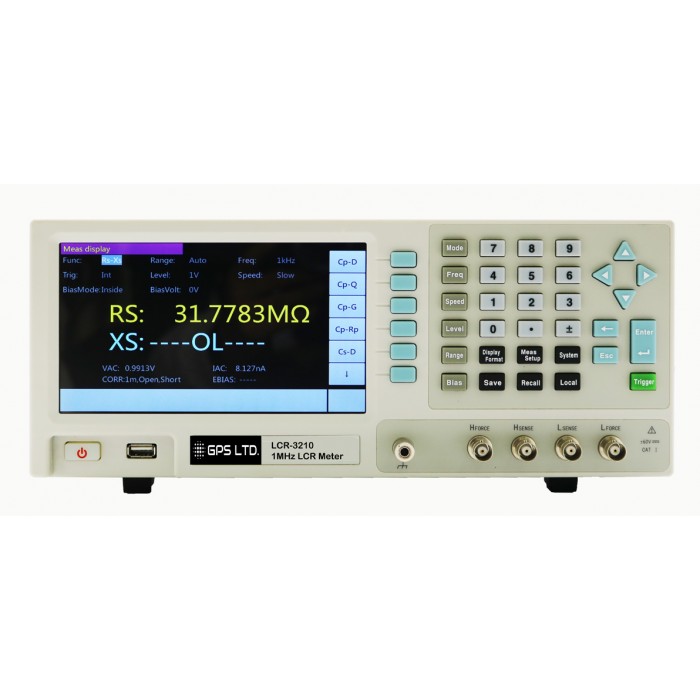

دستگاه LCR Meter رومیزی دیجیتالی مدل LCR-3210

دستگاه LCR Meter رومیزی دیجیتالی مدل LCR-3210 با  رنج  تست فرکانسی 10Hz ~ 1MKHz بصورت پیوسته   ، دارای نمایشگر رنگی TFT  با قابلیت نمایش چندین پارامتر بصورت همزمان و  شش و نیم دیجیت ، اندازه گیری مقادیر Cp-D/Q/G/Rp, Cs-D/Q/Rs,Lp-D/Q/G/Rp, Ls-D/Q/Rs,Rs-Xs, Z-θ, Y-θ, G-B  - قابلیت انتخاب ولتاژ تست  بصورت پیوسته 0.01V ~2.00Vrms ، قابلیت انتخاب امپدانس خروجی  ،  دقت اندازه گیری 0.05% ،  کالیبراسیون اتوماتیک Short/Open ، مقایسه کننده نتایج و دسته بندی نتایج -دسته بندی نتایج بر اساس Good/No good -قابل اتصال به PC - ،  بهمراه پراب   - ساخت كمپاني GPS Ltd

¤ 0.05% basic accuracy.

¤ Measuring speed up to 200 times per second.

¤ 10Hz-1MHz Frequency Measurement Range, Continuous Adjustable, 1mHz Step.

¤ Test signal level 10 mV-2 V adjustable, 1 mV step-by-step.

¤ Internal Programmable DC Bias Voltage-2V~+2V.

¤ Supporting external DC bias voltage-60V~+60V.

¤ Supporting external current source.

¤ Automatic Level Adjustment of Voltage or Current.

¤ V, I and other test signal monitoring functions.

¤ 10-Point List Scanning Test Function.

¤ 10-grade sorting and counting function.

¤ 100 sets of self-calibration data.

¤ Automatic and manual range.

¤ 7 inch LCD display, Chinese and English interface.

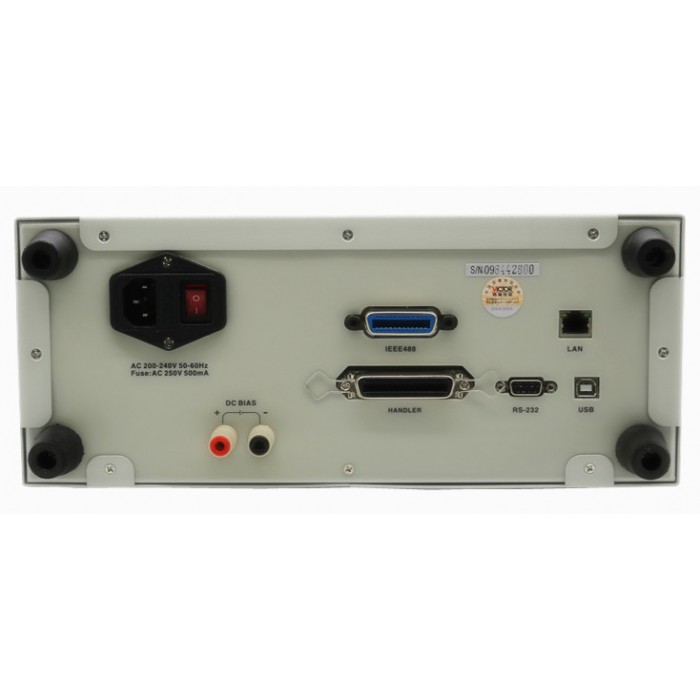

¤ USB, LAN, RS232, GPIB, HANDLER interfaces.

¤ Passive components: capacitors, inductors, magnetic cores, resistors, piezoelectric devices, transformers, chip components and network components impedance parameter evaluation and performance analysis.

¤ Semiconductor components: C-VDC characteristics of varactor diodes; parasitic parameter analysis of transistors or integrated circuits.

¤ Other Components: Impedance Evaluation of Printed Circuit Board, Relay, Switch, Cable, Battery, etc.

¤ Dielectric materials: dielectric constant and loss angle of plastics, ceramics and other materials evaluation of magnetic materials: permeability and loss angle evaluation of ferrites, amorphous and other magnetic materials.

¤ Semiconductor Materials: Dielectric Constants, Conductivity and C-V Properties of Semiconductor Materials.

¤ Liquid Crystal Materials: C-V Characteristics of Dielectric Constants and Elastic Constants of Liquid Crystal Units.

¤ Electronic capacitors, substrates, PCB, antennas, ferrites, shock absorbers, SAR phantom materials.

¤ Aerospace/National Defense Stealth, RAM (Radar Wave Absorbing Material), Radome.

¤ Industrial Material Ceramics and Composites Automotive Parts and Coatings.

¤ Polymers and Plastic Fibers, Films, Insulating Materials.

¤ Hydrogel disposable diapers and soft contact lenses.

¤ Liquid crystal display.

¤ Other products containing such materials such as tyres, coatings, adhesives, etc.

¤ Study on Fresh Preservation (Deterioration) of Food and Agricultural Food, Microwave Food Development, Packaging and

Moisture Content Measurement.
